Distribution Network Simulation with PV penetration¶
Author: Ruizhi Yu
The following distribution network is composed of 4 PVs and 2 synchronous machines.
To use Solverz for modeling and simulation of the network with PV penetration, one could refer to the codes below.
"""
IEEE 33 pv simulation
"""
import numpy as np
from Solverz import Var, Eqn, Ode, Param, Model, module_printer, exp, ln, sin, cos, Saturation, TimeSeriesParam, Rodas, \
Opt, made_numerical
import scipy.io as sio
import os
from sympy import re as real, im as imag
current_dir = os.getcwd()
file_path = os.path.join(current_dir, "test_ieee33pv", "par.mat")
par = sio.loadmat(file_path)
file_path = os.path.join(current_dir, "test_ieee33pv", "y0.mat")
y = sio.loadmat(file_path)['y'].reshape((-1,))
# %%
m = Model()
m.delta = Var('delta', y[0:2])
m.omega = Var('omega', y[2:4])
m.ix_pv = Var('ix_pv', -y[4:8])
m.iy_pv = Var('iy_pv', -y[8:12])
m.idref1 = Var('idref1', y[12:16])
m.urd1 = Var('urd1', y[16:20])
m.urq1 = Var('urq1', y[20:24])
m.upv = Var('upv', y[24:28])
m.iL = Var('iL', y[28:32])
m.udc = Var('udc', y[32:36])
m.D1 = Var('D1', y[36:40])
m.Ux = Var('Ux', y[40:73])
m.Uy = Var('Uy', y[73:106])
m.Ix = Var('Ix', y[106:139])
m.Iy = Var('Iy', y[139:172])
for name in par.keys():
if name not in ['G', 'B']:
if isinstance(par[name], np.ndarray):
m.__dict__[name] = Param(name, par[name].reshape(-1))
m.IB_sys = Param('IB_sys', 2.28)
m.Radiation = Param('Radiation', [1000, 1000, 1000, 1000])
m.kp = Param('kp', -m.kp.value)
m.ki = Param('ki', -m.ki.value)
m.kop = Param('kop', -m.kop.value)
m.koi = Param('koi', -m.koi.value)
m.Sfluc = TimeSeriesParam('Sfluc',
[1, 1, 1, 1, 1, 1],
[0, 4.99999, 5, 6, 6.00001, 20])
G = par['G'].toarray()
B = par['B'].toarray()
isc = m.ISC * m.Radiation * m.Sfluc / m.sref * (1 + 0.0025 * (m.T - 25))
im = m.IM * m.Radiation * m.Sfluc / m.sref * (1 + 0.0025 * (m.T - 25))
uoc = m.UOC * (1 - 0.00288 * (m.T - 25)) * ln(exp(1) + 0.5 * (m.Radiation * m.Sfluc / 1000 - 1))
um = m.UM * (1 - 0.00288 * (m.T - 25)) * ln(exp(1) + 0.5 * (m.Radiation * m.Sfluc / 1000 - 1))
c2 = (um / uoc - 1) / ln(1 - im / isc)
c1 = (1 - im / isc) * exp(-um / (c2 * uoc))
idx_pv = [7, 12, 27, 31]
m.ux_pv = Var('ux_pv', m.Ux.value[idx_pv])
m.uy_pv = Var('uy_pv', m.Uy.value[idx_pv])
for i in range(4):
m.__dict__[f'eqn_usd_{i}'] = Eqn(f'eqn_usd_{i}', m.ux_pv[i] - m.Ux[idx_pv[i]])
m.__dict__[f'eqn_usq_{i}'] = Eqn(f'eqn_usq_{i}', m.uy_pv[i] - m.Uy[idx_pv[i]])
m.__dict__[f'eqn_ixpv_{i}'] = Eqn(f'eqn_ixpv_{i}',
m.Ix[idx_pv[i]] - m.ix_pv[i] * m.Inom / m.IB_sys)
m.__dict__[f'eqn_iypv_{i}'] = Eqn(f'eqn_iypv_{i}',
m.Iy[idx_pv[i]] - m.iy_pv[i] * m.Inom / m.IB_sys)
ugrid_pv = m.ux_pv + 1j * m.uy_pv
exp_j_theta = ugrid_pv / abs(ugrid_pv)
usk_ctrl = ugrid_pv / exp_j_theta
usdk = real(usk_ctrl)
usqk = imag(usk_ctrl)
ig = m.ix_pv + 1j * m.iy_pv
ig_ctrl = ig / exp_j_theta
id = real(ig_ctrl)
iq = imag(ig_ctrl)
idref = Saturation(m.kop * (m.udcref - m.udc) + m.koi * m.idref1, -1, 1)
iqref = 0
urd = usdk - m.ws * m.lf * iq + m.kip * (idref - id) + m.kii * m.urd1
urq = usqk + m.ws * m.lf * id + m.kip * (iqref - iq) + m.kii * m.urq1
urdq = urd + 1j * urq
K_temp = 380 * 2 * np.sqrt(2 / 3)
temp = Saturation(K_temp / m.udc, 0, 1)
uidq = (1 / K_temp) * temp * m.udc * urdq
uid = real(uidq)
uiq = imag(uidq)
uixy = uidq * exp_j_theta
uix = real(uixy)
uiy = imag(uixy)
idc = (3 / 2) * m.Pnom * (uid * id + uiq * iq) / m.udc
ipv = isc * (1 - c1 * (exp(m.upv / (c2 * uoc)) - 1))
D = Saturation(m.kp * (um - m.upv) + m.ki * m.D1, 1e-6, 1 - 1e-6)
m.eqn_delta = Ode('eqn_delta', m.ws * (m.omega - 1), m.delta)
idx_gen = [5, 29]
for i in range(2):
igen = idx_gen[i]
Pei = m.Ux[igen] * m.Ix[igen] + m.Uy[igen] * m.Iy[igen] + m.ra[i] * (m.Ix[igen] ** 2 + m.Iy[igen] ** 2)
m.__dict__[f'eqn_omega_{i}'] = Ode(f'eqn_omega_{i}',
(m.pm[i] - Pei - m.Damping[i] * (m.omega[i] - 1)) / m.Tj[i],
m.omega[i])
m.__dict__[f'eqn_Edp_{i}'] = Eqn(f'eqn_Edp_{i}',
(m.Edp[i] - sin(m.delta[i]) * (
m.Ux[igen] + m.ra[i] * m.Ix[igen] - m.xqp[i] * m.Iy[igen])
+ cos(m.delta[i]) * (m.Uy[igen] + m.ra[i] * m.Iy[igen] + m.xqp[i] * m.Ix[igen])))
m.__dict__[f'eqn_Eqp_{i}'] = Eqn(f'eqn_Eqp_{i}',
(m.Eqp[i] - cos(m.delta[i]) * (
m.Ux[igen] + m.ra[i] * m.Ix[igen] - m.xdp[i] * m.Iy[igen])
- sin(m.delta[i]) * (m.Uy[igen] + m.ra[i] * m.Iy[igen] + m.xdp[i] * m.Ix[igen])))
m.eqn_id = Ode('eqn_id', m.ws / m.lf * (uix - m.ux_pv + m.lf * m.iy_pv), m.ix_pv)
m.eqn_iq = Ode('eqn_iq', m.ws / m.lf * (uiy - m.uy_pv - m.lf * m.ix_pv), m.iy_pv)
m.eqn_idref1 = Ode('eqn_idref1', m.udcref - m.udc, m.idref1)
m.eqn_urd1 = Ode('eqn_urd1',
idref - id,
m.urd1)
m.eqn_urq1 = Ode('eqn_urq1',
iqref - iq,
m.urq1)
m.eqn_upv = Ode('eqn_upv',
1 / m.cpv * (ipv - m.iL),
m.upv)
m.eqn_iL = Ode('eqn_iL',
1 / m.ldc * (m.upv - (1 - D) * m.udc),
m.iL)
m.eqn_udc = Ode('eqn_udc',
1 / m.cdc * ((1 - D) * m.iL - idc),
m.udc)
m.eqn_D1 = Ode('eqn_D1',
um - m.upv,
m.D1)
nb = m.Ix.value.shape[0]
for i in range(nb):
rhs1 = m.Ix[i]
rhs2 = m.Iy[i]
for j in range(nb):
rhs1 = rhs1 - (G[i, j] * m.Ux[j] - B[i, j] * m.Uy[j])
rhs2 = rhs2 - (G[i, j] * m.Uy[j] + B[i, j] * m.Ux[j])
m.__dict__[f'eqn_Ux_{i}'] = Eqn(f'eqn_Ux_{i}', rhs1)
m.__dict__[f'eqn_Uy_{i}'] = Eqn(f'eqn_Uy_{i}', rhs2)
m.Ux_slack = Eqn('eqn_Ux_slack', m.Ux[0] - 1)
m.Uy_slack = Eqn('eqn_Uy_slack', m.Uy[0])
for i in (par['id_others'].reshape(-1) - 1).tolist():
m.__dict__[f'eqn_ix_{i}'] = Eqn(f'eqn_ix_{i}', m.Ix[i])
m.__dict__[f'eqn_iy_{i}'] = Eqn(f'eqn_iy_{i}', m.Iy[i])
# %%
sdae, y0 = m.create_instance()
dae = made_numerical(sdae, y0, sparse=True)
# %%
dae.p['Sfluc'] = TimeSeriesParam('Sfluc',
[1, 1, 0.8, 0.8, 1, 1],
[0, 4.99999, 5, 6, 6.00001, 20])
sol = Rodas(dae,
[0, 20],
y0,
Opt(pbar=True))
U = (sol.Y['Ux'] ** 2 + sol.Y['Uy'] ** 2) ** (1 / 2)
P = (sol.Y['Ux'] * sol.Y['Ix'] + sol.Y['Uy'] * sol.Y['Iy'])
# %%
import matplotlib.pyplot as plt
plt.plot(sol.T, P[:, [7]])
plt.xlim([4.5, 6.5])
plt.ylim([0.10, 0.20])
plt.xlabel('Time/s')
plt.title('PV output at bus 8/p.u.')
plt.grid()
plt.show()
plt.plot(sol.T, U[:, 7])
plt.xlabel('Time/s')
plt.title('Bus voltage of bus 8/p.u.')
plt.xlim([0, 20])
plt.ylim([1.03, 1.09])
plt.grid()
plt.show()
The rationale behind the models can be found in paper[1].

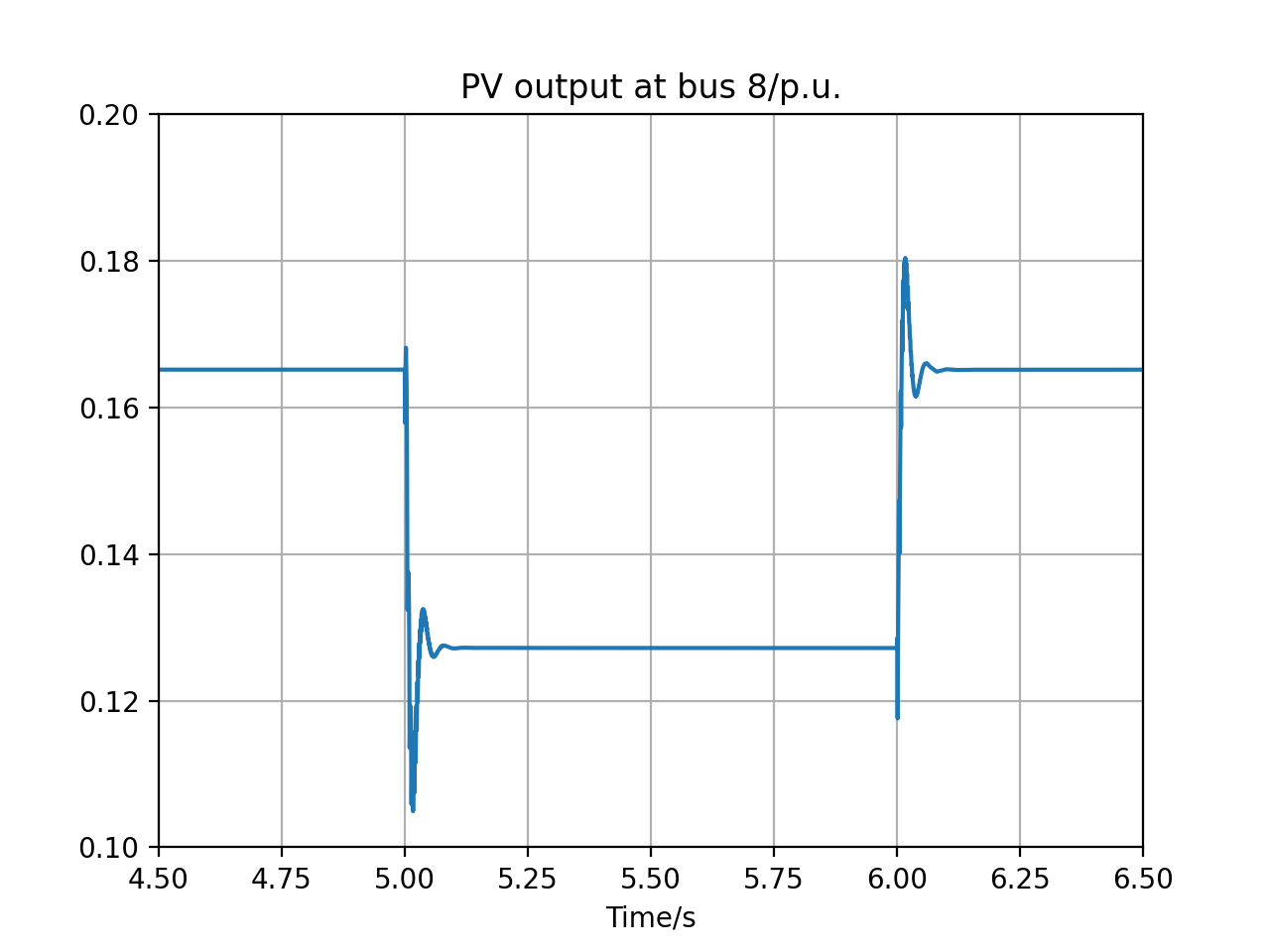

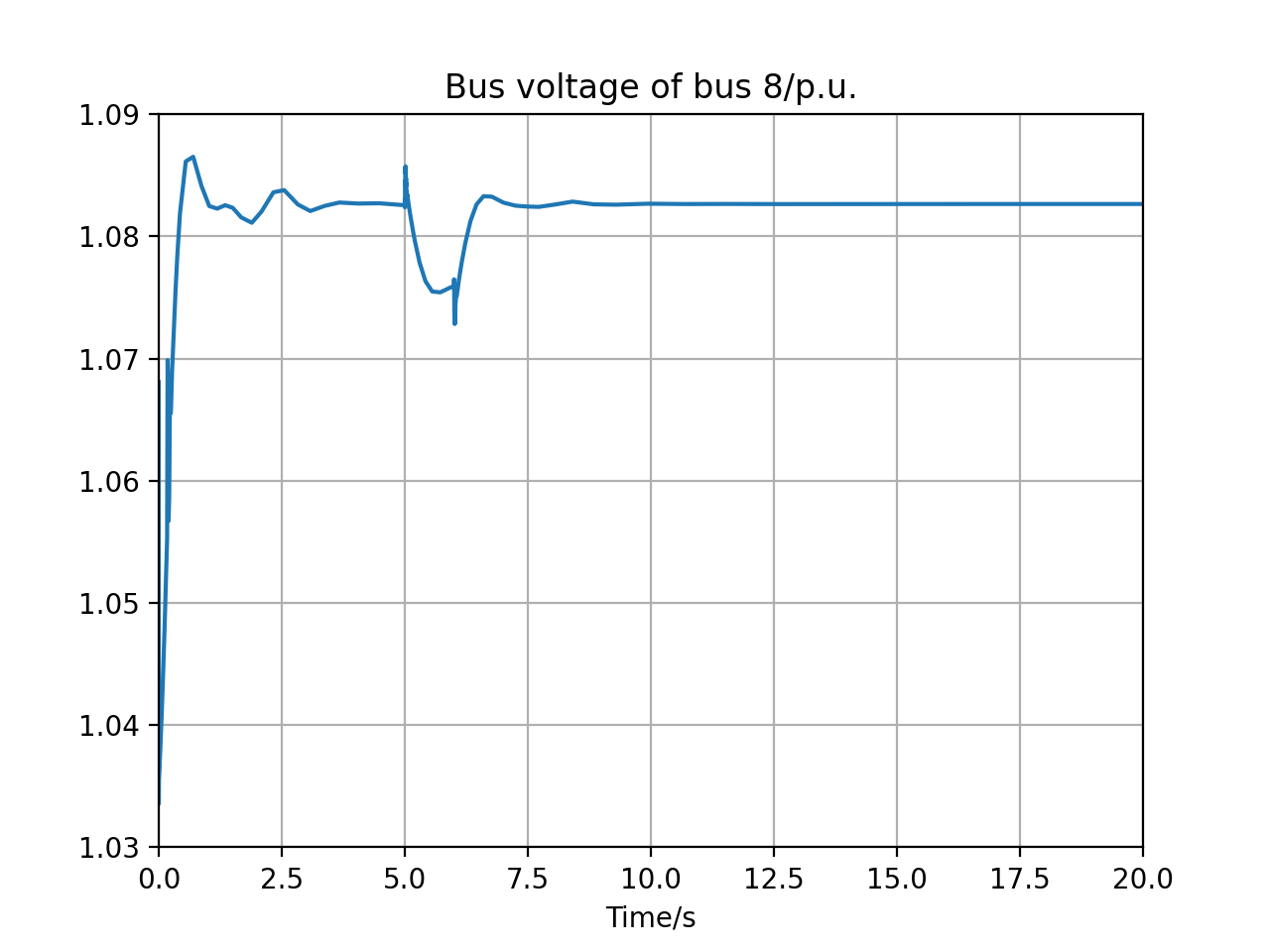

We have the PV output/voltage variation as follows.
(Source code, png, hires.png, pdf)
